A VC cooling plate, also known as a vapor chamber cooling plate, is a high-performance planar thermal management component designed for high-power electronic heat dissipation. Different from traditional metal heat sinks and ordinary heat pipe cooling structures, the

A VC cooling plate, also known as a vapor chamber cooling plate, is a high-performance planar thermal management component designed for high-power electronic heat dissipation. Different from traditional metal heat sinks and ordinary heat pipe cooling structures, theVC cooling plate relies on vacuum phase-change heat transfer technology to achieve ultra-fast heat conduction and uniform temperature spreading. With ultra-low thermal resistance and excellent heat dissipation uniformity, it effectively solves core industry pain points such as local overheating, heat accumulation and uneven temperature of high-density chips. Widely applied in consumer electronics, communication equipment, industrial control hardware and new energy devices, the vapor chamber cooling plate has become the preferred thermal solution for high-end precision electronic equipment. CustomVC cooling plate solution can match personalized power consumption, size and heat dissipation requirements to meet diverse high-precision cooling scenarios.

With the continuous upgrading of electronic technology, modern equipment is developing toward miniaturization, high integration and high power density. Traditional aluminum and copper heat sinks rely solely on metal thermal conductivity, which has limited heat transfer efficiency and is prone to serious local hotspots. Ordinary heat pipes can only conduct heat linearly, failing to realize large-area uniform heat dissipation, which easily leads to chip frequency reduction, equipment performance degradation and shortened service life. The innovative phase-change working principle of the VC cooling platee completely breaks through the limitations of traditional heat dissipation structures. It realizes rapid heat diffusion in all planar directions, greatly improves heat dissipation efficiency, and ensures long-term stable operation of high-power electronic equipment.

Working Principle of VC Cooling Plate

The excellent heat dissipation performance of the VC cooling platecomes from its unique vacuum phase-change circulation system and internal capillary structure. The whole plate is a fully sealed vacuum metal cavity filled with a small amount of high-purity working fluid. The inner wall is equipped with professional sintered copper powder or mesh capillary wick structure, which provides stable liquid backflow power for cyclic heat transfer. The entire heat dissipation process is passive, efficient and energy-free, relying on latent heat of fluid phase change to transfer heat rapidly.

When the equipment chip generates heat and transfers it to the evaporation area of the vapor chamber cooling plate, the internal working fluid absorbs heat and vaporizes instantly in the low-vacuum environment. The high-temperature steam spreads rapidly to the entire low-temperature condensation area of the cavity and releases latent heat to complete heat diffusion. After heat release, the steam condenses into liquid again, and flows back to the heat source evaporation area along the capillary wick structure. This continuous evaporation-condensation circulation realizes uninterrupted rapid heat transfer, making the surface temperature of the cooling plate extremely uniform and eliminating local hot spots fundamentally.

Core Advantages Over Traditional Heat Dissipation Parts

Compared with traditional copper/aluminum heat sinks and single heat pipes, the  VC cooling plate has irreplaceable comprehensive performance advantages in high-power heat dissipation scenarios. Firstly, it features ultra-high heat conduction efficiency. The phase-change heat transfer efficiency of vapor chambers is far higher than pure metal heat conduction, which can quickly take away concentrated heat from high-power chips and avoid heat accumulation. It can realize uniform temperature coverage on the entire plate surface, solving the hot spot problem that traditional heat sinks cannot eliminate.

Secondly, the vapor chamber cooling plate has ultra-low thermal resistance and stable heat dissipation performance. The internal vacuum design reduces heat transfer resistance to the extreme, with fast heat response speed and no heat hysteresis. Even under long-term high-load operation, it can maintain consistent heat dissipation efficiency without performance attenuation. In addition, it features thin and lightweight structural advantages, which is very suitable for thin and light electronic equipment with limited internal space, realizing efficient heat dissipation while saving installation space.

Moreover, the customized VC cooling plate  solution has strong environmental adaptability and long service life. The fully sealed integral structure effectively prevents liquid leakage and air ingress, avoiding performance failure caused by oxidation and dust. It can stably work in high-temperature, high-vibration and complex industrial environments, with anti-aging and anti-corrosion capabilities, ensuring long-term reliable operation of equipment thermal systems.

Main Structural Features & Material Configuration

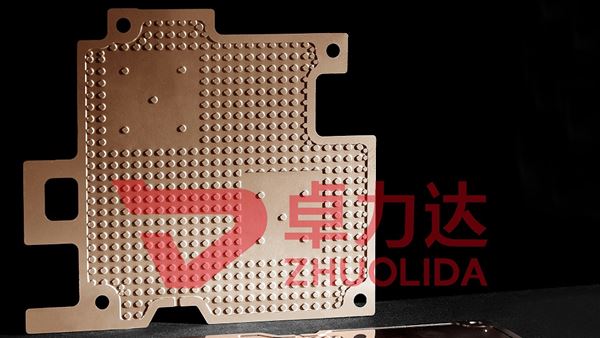

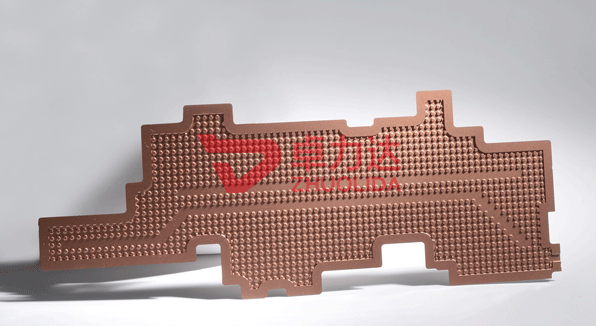

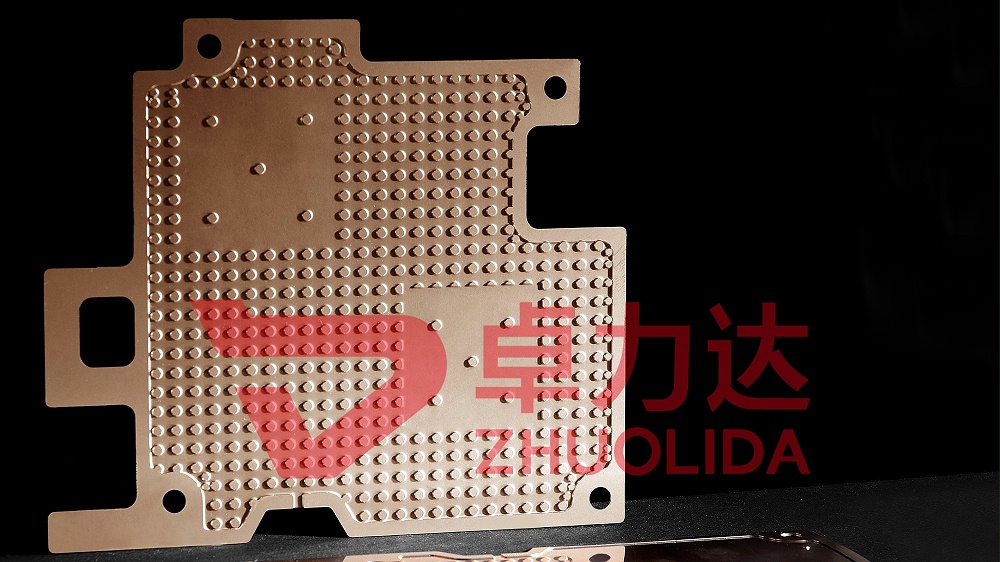

High-qualityVC cooling plate  adopts high-purity oxygen-free copper as the outer shell material, which has excellent thermal conductivity, ductility and structural stability. The internal core capillary structure is made of high-precision sintered copper powder or copper mesh, with uniform pore size and strong capillary force, ensuring smooth liquid backflow and stable cyclic heat transfer. The internal working fluid adopts environmentally friendly high-purity deionized water, which is safe, non-toxic and has efficient phase-change heat transfer performance.

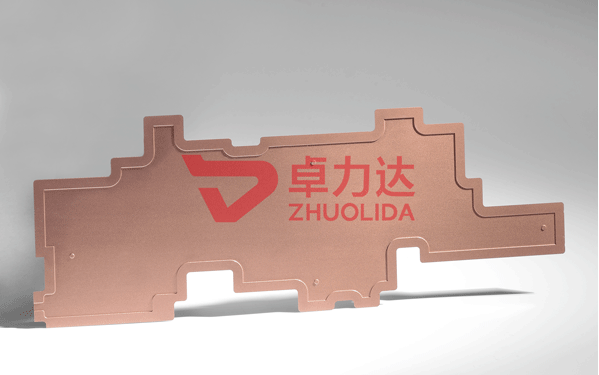

The overall structure of the vapor chamber cooling plate is precision welded and sealed, with ultra-flat surface, no deformation and no leakage. The thickness can be customized in ultra-thin specifications to adapt to compact equipment installation. The edge reinforcement and anti-pressure design effectively prevent structural damage and performance degradation caused by extrusion and bending during installation and use. All products undergo strict vacuum pumping and sealing processes to ensure stable internal vacuum degree and lasting heat dissipation performance.

Wide Industrial Application Scenarios

Efficient and uniform heat dissipation performance makes the VC cooling plate  widely used in high-end electronic thermal management fields. In consumer electronics, it is applied to smart phones, tablet computers, laptops and game devices, solving heat dissipation problems of high-performance processors and improving equipment operating fluency and user experience.

In the communication and data center industry, the vapor chamber cooling plate serves 5G base stations, server chips and high-density computing equipment. It effectively reduces equipment operating temperature, lowers PUE value, and ensures stable operation of high-load computing devices. In industrial control and new energy fields, it is used for industrial motherboard chips, inverter equipment, battery management systems and automotive electronic equipment, providing reliable thermal protection for high-power industrial equipment.

In addition, the professional VC cooling plate solution is also applicable to medical precision equipment, aerospace electronic devices and intelligent wearable equipment, covering almost all high-precision and high-power electronic heat dissipation scenarios, becoming a core component of modern intelligent equipment thermal management systems.

Customization Advantages of VC Cooling Plate

To meet the differentiated heat dissipation demands of different equipment power and structural spaces, professional manufacturers provide full-dimensional customized services for VC cooling plate . It supports personalized customization of plate thickness, outline size, shape structure and mounting holes, including special-shaped, ultra-thin and large-size vapor chamber cooling plates to adapt to non-standard equipment installation spaces.

In terms of performance customization, we can adjust internal capillary structure density, vacuum degree and working fluid content according to equipment power consumption and heat generation, optimizing heat conduction speed and temperature uniformity. Surface treatments such as black oxidation, sandblasting and anti-oxidation coating can be customized to improve thermal radiation efficiency and environmental adaptability. Both small-batch prototype customization and large-batch mass production are supported, with stable batch quality and fast delivery for global electronic equipment manufacturers and thermal solution suppliers.

Conclusion

As a core high-efficiency thermal management component in modern electronic manufacturing, the VC cooling plate  relies on phase-change heat transfer technology to achieve efficient and uniform heat dissipation, making up for the performance defects of traditional heat dissipation accessories. The high-stability, thin and lightweight vapor chamber cooling plate and flexible customized VC cooling plate solution are widely used in consumer electronics, communication computing, industrial control and new energy fields. Choosing professional VC cooling plate products can effectively eliminate equipment hotspots, improve operating stability and prolong equipment service life, providing reliable thermal protection for high-end intelligent electronic equipment.
