LED Printing Stencils | Mini/Micro LED Precision Steel Mesh for Solder Paste Printing
1. Introduction

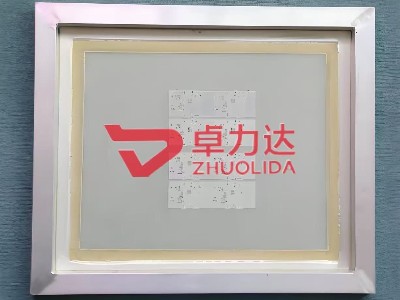

LED printing stencils , also known as SMT precision steel meshes, are essential tooling for modern LED packaging and SMT assembly. By transferring solder paste evenly and quantitatively onto PCB pads through high-precision metal openings, they ensure accurate chip mounting and stable reflow soldering. With the rapid upgrading of Mini LED, Micro LED and COB packaging technologies, pad pitches have been reduced to 0.2mm or even finer, putting forward higher requirements for stencil precision, aperture consistency and solder paste release performance. Nantong Zhuolida specializes in high-end precision metal processing, providing customized LED printing stencils via integrated etching, laser cutting, electroforming and electropolishing processes. Our stencils effectively solve common production problems such as solder bridging, insufficient solder, aperture clogging and sheet deformation, greatly improving production yield and manufacturing efficiency for LED display, automotive electronics and lighting industries. 2. Working Principle and Material Selection
LED printing stencils form accurate aperture patterns matching PCB pad positions through laser cutting, chemical etching or electroforming. During printing, solder paste is squeezed through stencil openings to achieve uniform and fixed-volume transfer. Key indicators including aperture shape, plate thickness, hole wall roughness and positioning accuracy directly determine printing quality and batch stability.
We adopt three mainstream high-performance materials to adapt to different LED production scenarios. 316L stainless steel features high strength, strong stability and cost advantages, suitable for conventional LED and Mini LED large-module mass production, with electropolishing treatment to reduce solder adhesion. Electroformed nickel alloy delivers ultra-smooth mirror hole walls and minimal deformation, ideal for ultra-fine pitch Micro LED processes requiring extremely high consistency. Polyimide composite film offers excellent flexibility and low thermal expansion, perfectly serving flexible LED and special COB curved packaging scenarios.
3. Precision Processing Technology and Quality Control
Nantong Zhuolida implements standardized full-process production for all LED stencils. After optimizing PCB data and designing professional stepped openings and nano-coating structures, we select 0.05–0.2mm high-precision metal substrates for processing. We adopt three core manufacturing technologies: laser cutting for ±2.5μm high precision suitable for fine-pitch products; chemical etching for efficient and cost-effective large-size stencils; and electroforming for ultra-precision Micro LED tooling with over 95% solder paste release rate.
Strict post-processing ensures stable printing performance. Electropolishing reduces hole wall roughness to Ra≤0.4μm to avoid solder residue and bridging defects. Plasma cleaning removes surface slag, and professional tension calibration maintains stable tension at 40–50N/cm² to prevent printing offset. All finished stencils pass full inspection via 2D imagers, thickness testers and tension testing equipment to guarantee consistent precision and appearance for mass delivery.
4. Main Application Scenarios
Our precision LED printing stencils are widely applied in high-end optoelectronic manufacturing. For Mini/Micro LED display modules, ultra-fine pitch stencils ensure uniform solder printing and stable display quality. Custom stepped stencils effectively solve collapse and virtual soldering issues in COB chip direct packaging. For automotive LED headlights and ambient light strips, high-temperature and vibration-resistant stencils adapt to harsh vehicle operating environments. In consumer electronics, our tooling supports high-precision processing of mobile phone, tablet and TV backlight modules, meeting miniaturization and high-integration production needs. The products cover optoelectronic display, automotive electronics, commercial lighting and wearable device industries. 5. Advantages of Nantong Zhuolida
As a professional precision stencil manufacturer, we own full in-house production lines including etching, electroforming, laser cutting and surface treatment, realizing one-stop manufacturing without outsourcing errors, ensuring high precision and stable delivery cycles. Our dual-process of laser cutting and electropolishing and professional Micro LED electroforming technology solves various fine-pitch printing difficulties in the industry. Supported by ISO9001 quality system and complete testing equipment, we strictly control product defect rates to ensure long-term stable mass supply.
We provide efficient and flexible customer services, including 3–5 days rapid sample proofing and priority production for bulk urgent orders. The professional technical team optimizes aperture design one-on-one according to customer processes, with 24-hour after-sales response and fast problem-solving capabilities. Meanwhile, our standardized environmental production processes ensure sustainable order delivery without policy-related production suspension risks.
6. Conclusion
High-precisionLED printing stencils are core foundational tooling for the iterative upgrading of Mini/Micro LED industries. Stable stencil accuracy and solder release performance are key to improving product yield and market competitiveness. Adhering to high-standard precision manufacturing, Nantong Zhuolida provides reliable, customized SMT stencil solutions for global LED and electronic manufacturers. We welcome customers for drawing optimization, sample testing and long-term bulk cooperation to achieve win-win development.
