What Is a Grating Encoder

agrating encoder  is a high-precision optical sensing component used to detect mechanical displacement, rotation angle, speed and position. It works by cooperating with optical transmitting and receiving modules to read periodic grating fringe signals on the grating disc. As a core part of automatic control and precision motion systems, the grating encoder determines the detection accuracy, response stability and repeatability of intelligent equipment. Electroformed grating encoders are widely recognized for their ultra-fine line consistency, flatness and zero internal stress advantages.

Working Principle of Grating Encoder

The operation of agrating encoder relies on optical diffraction and photoelectric conversion. When the equipment rotates or moves, the grating disc cuts the optical path regularly. The dense and uniform grating lines generate continuous alternating bright and dark optical signals. The photoelectric sensor converts optical signals into electrical pulse signals, and the system calculates real-time position and motion data through pulse counting. Therefore, the uniformity, edge verticality and line precision of the grating disc directly decide the encoder’s overall accuracy.

Disadvantages of Traditional Grating Discs

Most traditional grating discs are produced by laser cutting, etching and stamping processes. These processing methods inevitably cause thermal deformation, burrs, line distortion and residual stress. Low-end grating discs often have inconsistent line spacing, rough edges and poor flatness, resulting in signal jitter, counting errors and unstable detection data during long-term operation. Such defects greatly reduce the service stability and detection precision of high-end automation equipment.

Advantages of Electroformed Grating Encoder

Electroformed grating encoder discs produced by electroforming technology completely avoid the defects of traditional physical processing. Relying on electrochemical ion deposition molding, the grating disc is integrally formed with zero internal stress. The grating lines are highly consistent with vertical and smooth edges, no burrs and no deformation. The ultra-flat plate surface ensures stable optical transmission, effectively eliminating signal fluctuation and counting deviation, and improving the resolution and detection accuracy of the encoder.

Core Product Features

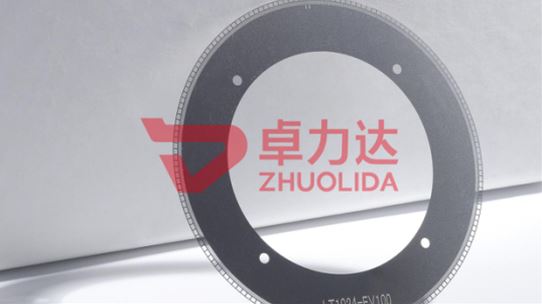

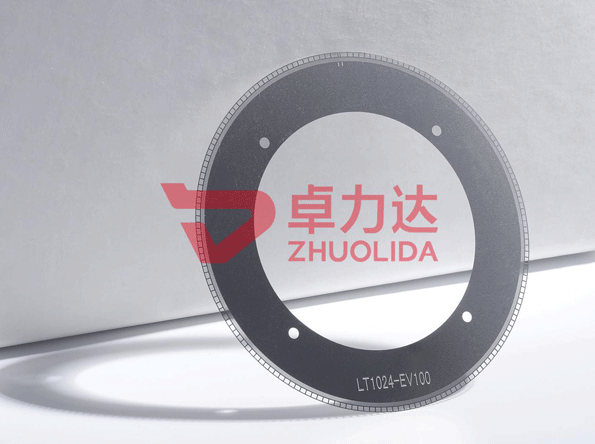

Zhuolida high-precision electroformedagrating encoder  discs support ultra-fine grating customization with high line density. The product features high dimensional accuracy, good structural compactness, strong oxidation resistance and stable mechanical performance. It can maintain long-term precision stability under high-speed rotation and frequent vibration conditions. Customizable parameters include outer diameter, inner aperture, grating line number, line width and structural shape, meeting diversified precision matching needs of different encoder models.

Wide Industrial Applications

The high-stability agrating encoder  is widely applied in precision automation equipment, optical detection instruments, medical devices, servo motor systems and intelligent robotic arms. It provides accurate position feedback and motion monitoring for high-precision processing, automatic positioning and closed-loop control systems, effectively improving equipment operating accuracy and production consistency.

Professional Manufacturing Strength of Zhuolida

Zhuolida is a professional electroforming manufacturer focusing on high-precision grating encoder discs and micro-structure metal parts. With independent dust-free production workshops and precision testing equipment, the factory strictly controls grating line accuracy, flatness and structural stability. Adopting optimized nickel-cobalt alloy electroforming technology, our grating encoder products feature wear resistance, corrosion resistance and long service life, providing reliable customized precision solutions for global industrial customers.
