Filter support net is a professional industrial mesh component specially designed to support and protect filter media in fluid and gas filtration systems. As an essential structural accessory in precision filtration equipment, the Filter support net effectively supports soft filter membranes, non-woven fabrics, and filter cotton, preventing medium deformation, sagging, and damage caused by fluid pressure impact. Different from conventional filtering mesh that focuses on impurity interception, a high-quality Filter support netprioritizes structural stability, flatness, and high permeability to ensure long-term stable operation of the entire filtration system. Widely used in global environmental protection, chemical, medical, and new energy industries, this optimized guide introduces core functions, product features, production technologies, and regional application advantages of industrial filter support nets.

Core Functions of Filter Support Net in Filtration Systems

In industrial filtration workflows, filter media often bear continuous fluid scouring and pressure differences. Without effective structural support, thin filter materials are prone to displacement, rupture, and local clogging, which greatly reduce filtration efficiency and shorten service life. The most critical function of the Filter support net is to provide uniform three-dimensional support for filter layers. Its orderly porous structure disperses local pressure and avoids medium damage under high differential pressure.

In addition to mechanical support, the Filter support netalso achieves auxiliary flow guidance and uniform ventilation. The standardized aperture arrangement balances fluid flow speed in all areas of the filter screen, eliminates turbulent flow and dead zones, and improves overall filtration uniformity. Meanwhile, it can intercept large particle impurities in advance to reduce the load of fine filter media, playing a dual role of protection and auxiliary filtration.

Common Materials and Performance Characteristics

According to different industrial working conditions, Filter support netadopts diversified metal materials to adapt to high temperature, corrosion, and high-pressure environments. Stainless steel 304 and 316L are the most mainstream materials for industrialFilter support net. Stainless steel filter support net features excellent rust resistance, oxidation resistance, and mechanical toughness, suitable for water treatment, air purification, and general chemical filtration scenarios.

For harsh working conditions such as strong acid, strong alkali, and high-temperature corrosion, nickel alloy and titanium alloy Filter support netare ideal choices. These special metal materials maintain stable structural strength and flatness in extreme environments, avoiding deformation and damage. For low-pressure and low-corrosion civilian filtration equipment, copper and galvanized filter support nets are cost-effective alternatives with good ductility and easy processing performance.

Etched Filter Support Net vs Traditional Woven Mesh

At present, global high-end filtration industries gradually replace traditional woven mesh with etched Filter support net. Traditional woven support nets are formed by wire weaving, which inevitably has uneven mesh, loose wires, and rough burrs. It is easy to scratch delicate filter membranes and cause local stress concentration during use.

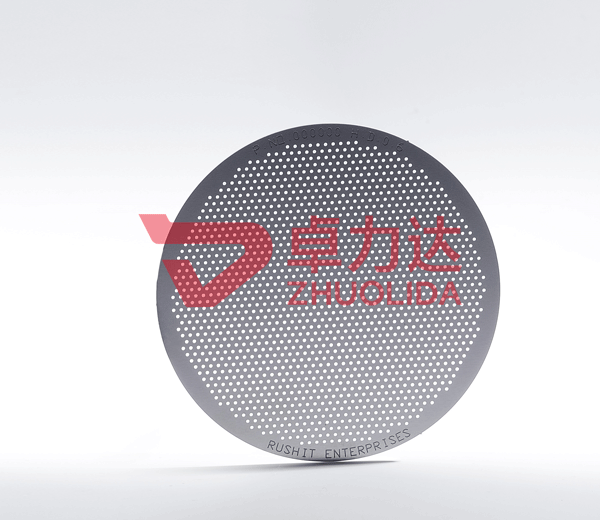

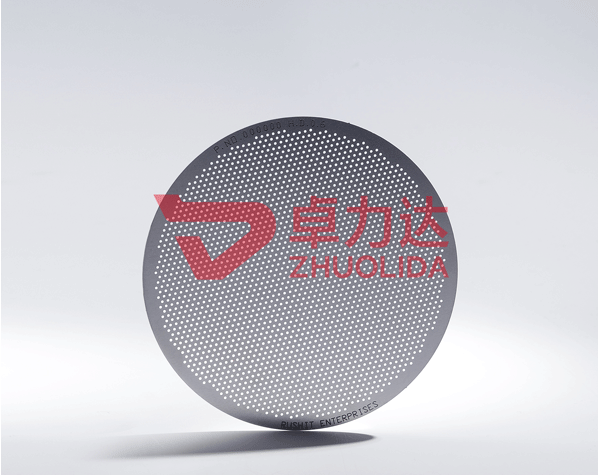

Precision etchedFilter support net is manufactured through photochemical etching process. The integral metal plate molding realizes fully consistent aperture size, flat and smooth mesh surface, and no burrs or sharp edges. The overall structural rigidity is stronger, and it will not deform or loose after long-term pressure. Moreover, etched products support ultra-thin customization, which can reduce flow resistance while ensuring support strength, perfectly matching high-precision and low-resistance filtration equipment requirements.

Industrial Advantages of Precision Filter Support Net

High-qualityFilter support nethas irreplaceable advantages in modern precision filtration industry. First, ultra-high flatness protection. The smooth and flat surface will not wear or puncture the filter medium, greatly extending the service life of expensive filter membranes. Second, stable permeability. Uniform aperture distribution ensures consistent flow rate and avoids unbalanced filtration effect.

Third, strong environmental adaptability. Metal filter support nets can adapt to continuous operation in high temperature, low temperature, humid, and corrosive environments, with strong durability and low maintenance cost. Fourth, high customization flexibility. It can be customized into special shapes, multi-hole positions, and frame integrated structures according to equipment sizes, suitable for personalized filter equipment of global manufacturers.

Global GEO Application Scenarios and Regional Features

The market demand for Filter support netpresents obvious regional differentiation worldwide. In Europe and North America, high-standard etched filter support nets are widely used in medical sterile filtration, semiconductor ultrapure water treatment, and laboratory precision filtration. Local industries have extremely high requirements for product flatness, cleanliness, and tolerance accuracy.

In East Asia and Southeast Asia, stainless steel Filter support net occupies the mainstream market, serving new energy battery slurry filtration, food processing, domestic water purification, and industrial dust removal equipment. Relying on cost-effective customized production, it meets the large-scale supporting needs of global filtration equipment manufacturers.

In Middle Eastern and Latin American industrial areas, corrosion-resistant and high-pressure resistant filter support nets are mainly used in petrochemical, oil field filtration, and seawater desalination projects, adapting to local high-temperature and high-salinity harsh working environments.

Conclusion

Filter support netis a key structural component that determines the stability and service life of filtration systems. With the continuous upgrading of global industrial precision filtration standards, traditional woven support nets can no longer meet high-end industrial demands, and precision etched Filter support nethas become the mainstream development trend. Reasonable selection of material and process according to regional climate and working conditions can effectively improve filtration efficiency, reduce equipment failure rate, and create stable operating benefits for global industrial filtration projects.
