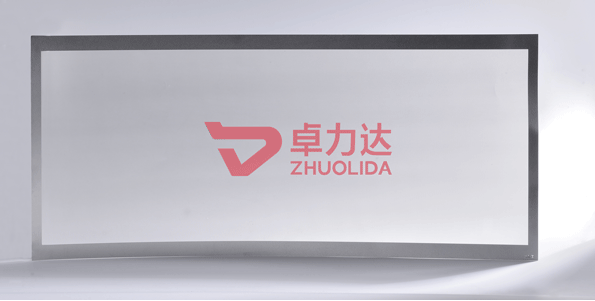

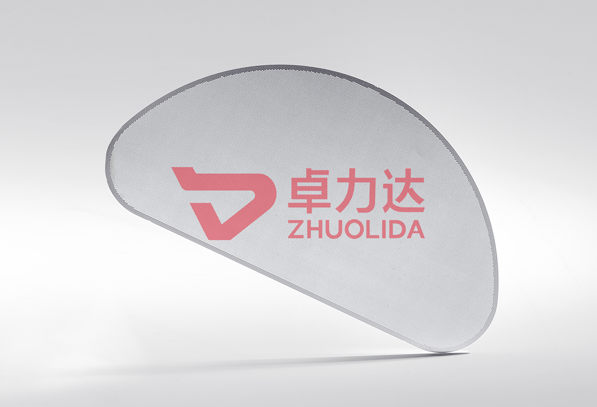

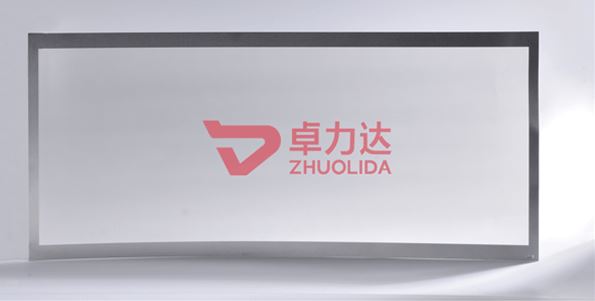

Micro hole machining

Product description product name: micro hole processing product introduction: as the name implies is in the need to process the workpiece with chemical etching process or other processes to process small holes.Applications: widely used in precision filtration equipment, chemical fiber spinnerets, jet engine nozzles, computer print heads, printed circuit boards, television baffles, astrology star orifice plates, aviation gyroscope instrument components, aircraft turbine blades and medical equipment in red blood cell filters...

CONSULTATION

189-3869-3452 0513-8160 1666

PRODUCT DETAILS

Product introduction
Product introduction:	Micro hole machining
Product description:	Micromachining, as the name implies, is the use of chemical etching process or other processes to process small holes in the workpiece to be processed.
Product usage:	Micromachining is widely used in precision filtration equipment, chemical fiber spinneret, jet engine nozzle, computer printout, printed circuit board, TV baffle, planetarium plate, aeronautical gyro instrument component, aircraft turbine blade and red blood cell filter in medical equipment.
Etching process:	Material opening → cleaning plate → dry film or coating → drying → exposure → development → drying → etching → stripping → detection of packaging -- finished product shipment.
Our strengths
1. Up to 2018, we have been engaged in the field of etching for 19 years, and have been committed to technical innovation, research and development, production and sales of micro hole processing products in the middle and high-end market.Aspire to become China's etching industry hundred year enterprise!
2. The company has successively passed iso9001:2008 quality management certification and iso14001:2004 environmental management system. In 2016, the company passed ISO/TS 16949 certification and high-tech enterprise certification.
3. As a member of PCMI, the world etching association, the company can share new information and equipment of the global etching industry.
4. It has an automatic adding system and regeneration system for potions, and a self-built large-scale sewage treatment system, with the reuse rate of wastewater reaching above 40%.
5. We can do micro-hole processing with a small thickness of 0.02mm and a large etching size of 1800*700mm, with a precision up to +/-0.005mm according to the product.
6. Shenzhen zhuolida, kunshan zhuolida and nantong zhuolida three production bases, with a comprehensive area of more than 40,000 square meters.More than 20 conventional, imported and customized non-standard precision etching lines can meet the requirements of production capacity and precision of various micro-hole processing products.

PRODUCT CHARACTERISTICS

01
Microporous machining is a difficult technology in traditional machining, which is between traditional machining and micro machining.There are studies on this in laboratories in many countries.The micro-hole machining workpiece produced by the etching process has no burr, pressure point, the product does not deform, does not change the material properties, does not affect the function of the product, and the cost is low.
02
Zhuolida USES chemical etching process to carry out micro hole processing, especially for some mesh dense, high tolerance requirements of small holes have a very unique processing method.The hole wall after processing is hairless, with uniform pore diameter and good roundness.When this kind of dense or not dense microporous products need to be mass produced, the etching process can also respond positively.

Divided according to the scope of the pore size, and so far about more than 50 kinds of micro hole machining way, each kind of machining method has its advantages and disadvantages of b, it mainly depends on the size of the workpiece aperture, hole arrangement, hole density, hole accuracy requirement, and to consider subsequent use factor of artifacts, it comes to think about which one to use process can batch processing problem.Nantong zhuolida chemical etching factory is a comprehensive strength, is a high-tech enterprise with a variety of processes, all the raw materials used by the company are mainly imported, can be used to etching a variety of different metal materials, micro-hole processing thickness from 0.02-1.0mm, etching tolerance small can achieve +/-0.01mm.If you need to do micro-hole processing products, or you need to understand the micro-hole processing process and principle, please contact us, we will serve you wholeheartedly!

HOT PRODUCT

: Microchannel cold plate

Microchannel, also known as microchannel cold plate, is a heat exchanger with a channel diameter of 10 to 1000um.Its internal flat tube has dozens of fine flow channels, which are connected with the circular manifold at both ends of the flat tube.

: Etch the strainer

Etching filter can be widely used in petroleum, chemical industry, food, pharmaceutical industry precision filter, filter plate, filter cylinder and filter;Metal leakage plate for electronic industry;Juice filter, razor mesh;Metal signs, nameplates and badges;Electronic industry integrated circuit printing edition.

: Vacuum cleaner strainer

Vacuum cleaner filter, as a filter element, is a key link in the filtering process of vacuum cleaner. The quality of vacuum cleaner filter determines the filtering effect of vacuum cleaner to a large extent.The vacuum cleaner filtaer with etching process has no burr and good flatness.

: Microporous plate etching

Microporous plate etching products cover a wide range of fields, including communications, acoustics, optics, medical, security, machinery, aviation, land transport tools, home appliances and so on.
