Electroformed Mask: High Precision Metal Evaporation Mask from Zhuolida

Introduction

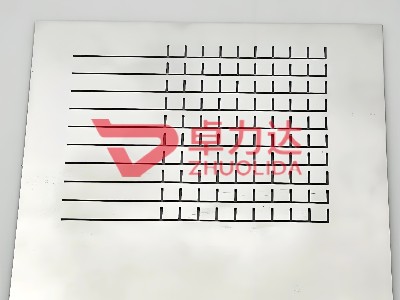

An electroformed mask, also known as an electroformed metal mask or evaporation mask plate, is a high-precision thin metal template manufactured through the additive electroforming process. Unlike etched metal masks that remove material by chemical corrosion, electroformed masks grow nickel or nickel-cobalt metal atom by atom on a patterned conductive mandrel. This unique manufacturing method delivers ultra-smooth aperture sidewalls, outstanding dimensional stability and micron-level pattern accuracy, making electroformed masks the ideal solution for advanced microfabrication.

As a professional electroformed mask manufacturer in Nantong, Zhuolida supplies custom electroformed mask plates for global customers across OLED display, SMT printing, semiconductor packaging, MEMS and micro-component industries. Our electroformed metal masks are widely adopted as evaporation mask plates for OLED organic material deposition, ultra-fine pitch solder paste printing and wafer-level packaging. If you are searching for reliable electroformed mask suppliers with strict tolerance control, Zhuolida can provide one-stop custom mask services from pattern design, prototype testing to mass production.

What is an Electroformed Mask and How Is It Made?

Electroforming is an additive electrochemical manufacturing technology. The whole production flow of an electroformed mask starts with a precision mandrel. Photoresist is coated, exposed and developed on the mandrel to form the inverse pattern of the final mask. Under controlled electric current, nickel or nickel alloy ions deposit layer by layer around the photoresist features. After reaching the target thickness, the finished electroformed mask is peeled off from the mandrel, followed by cleaning, surface inspection and frame assembly.

This additive process creates trapezoidal, mirror-smooth aperture walls without burrs or undercut, a common defect of chemical etched mask plates. Our electroformed mask can achieve thickness from 0.01 mm to 0.05 mm, with thickness tolerance controlled within ±1%. The dimensional precision can reach ±0.5 μm, suitable for ultra-fine apertures down to 5 μm. Each electroformed mask from Zhuolida undergoes automated optical inspection (AOI) to eliminate pinholes, pattern distortion and edge defects before delivery.

Core Advantages of Electroformed Mask

Compared with laser-cut stencils and etched metal mask plates, electroformed masks own obvious strengths for high-end precision applications.

First, superior aperture wall quality. Electroformed mask apertures have extremely smooth vertical or slight trapezoidal sidewalls. For OLED evaporation mask plates, smooth sidewalls reduce shadow effect during organic material evaporation and improve pixel uniformity. For SMT micro assembly, electroformed stencils enable clean solder paste release and effectively reduce bridging for ultra-fine pitch components such as 01005, micro BGA and CSP.

Second, excellent material performance. Our electroformed metal masks are made of high-purity nickel or nickel-cobalt alloy, featuring low thermal expansion coefficient, high hardness and strong corrosion resistance. The service life of an electroformed mask is 3–5 times longer than traditional etched mask plates, which helps customers lower long-term tooling replacement cost.

Third, flexible customisation. At Zhuolida, we can tailor electroformed mask size, pattern layout, local thickened areas and frame welding structure according to customer drawings. Whether you need small-batch prototype electroformed mask plates or large-size evaporation mask plates for OLED panel production, we can adjust the electroforming parameters to match your requirements.

Main Applications of Electroformed Mask

1. OLED & Mini LED Evaporation: Electroformed evaporation mask plate (EMM) is the core tool for depositing organic light-emitting materials onto OLED substrates. Ultra-fine pixel patterns on electroformed masks support high PPI flexible displays, wearable screens and AR/VR devices. Low internal stress of our electroformed mask prevents deformation under continuous thermal cycling in vacuum evaporation chambers.





2. Semiconductor Advanced Packaging: Electroformed mask plates are used for wafer bumping, flip chip and WLP processes. Precise micro-apertures ensure uniform solder ball formation and boost packaging yield.





3. SMT Ultra-Fine Pitch Printing: Electroformed stencils are the premium choice for microelectronics PCB assembly. Smooth aperture walls improve paste transfer efficiency for tiny electronic components.


4. MEMS, Optical Components & Micro Fluidics: Electroformed metal masks are applied in micro channel fabrication, optical coating and micro sensor manufacturing.





Why Choose Zhuolida as Your Electroformed Mask Supplier?

Zhuolida, located in Nantong China, is a dedicated manufacturer of electroformed mask, metal mask plate and evaporation mask plate. We have built a full electroforming production workshop with precision photolithography, electroforming tanks, AOI inspection and mask framing equipment.

We focus on quality control for every electroformed mask order. Our engineering team reviews your Gerber files, optimises aperture design and recommends suitable mask thickness and alloy material based on your working environment. We support fast sampling and stable mass production, offering competitive lead time for overseas buyers.

We serve electronics manufacturers, display factories, semiconductor packaging houses and micro-tech companies worldwide. All electroformed masks can be packed with anti-static packaging to avoid scratch and deformation during international shipping.

Conclusion

As microelectronic devices keep shrinking, electroformed mask has become an indispensable precision tool for OLED evaporation, semiconductor packaging and ultra-fine SMT printing. Thanks to the additive electroforming process, electroformed metal mask plates outperform etched and laser-cut masks in aperture smoothness, pattern fidelity and service life.

For custom electroformed mask, evaporation mask plate and metal mask plate solutions, contact Zhuolida today. Our experienced sales and engineering team will reply quickly and provide professional technical support for your next microfabrication project.
