Soaking plate

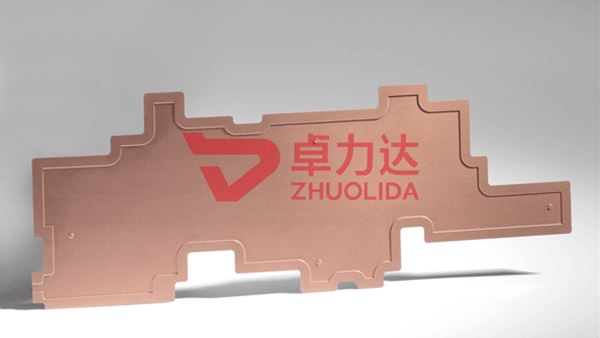

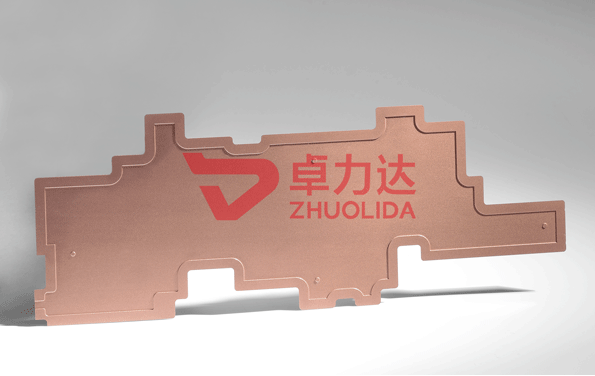

The soaking plate is a vacuum chamber with a fine inner wall, usually made of copper.Mainly used in mobile phones, computers, servers, video CARDS, etc. to play a role in cooling.

86-513-81601668 86-18206293159

PRODUCT DETAILS

Product introduction

Product introduction:

Soaking plate

Product description:

The soaking plate is a vacuum chamber with a fine inner wall, usually made of copper.When heat by heat conduction to the evaporation zone, the cooling liquid in the cavity in low vacuum environment begin to produce after heated coolant gasification phenomenon, the absorption heat and rapid expansion volume, gas phase of the cooling medium quickly filled the entire cavity, when the gas phase working medium come into contact with a colder area will produce the phenomenon of condensation.By means of condensation, the heat accumulated during evaporation is released, and the condensed coolant is returned to the evaporative heat source by means of capillary channels in the microstructure. This operation is repeated in the chamber.

Product usage:

Thermal board is mainly used in mobile phones, computers, servers, video CARDS, and so on, play a role in cooling.

Etching process:

Material opening → cleaning plate → dry film or coating → drying → exposure → development → drying → etching → stripping → detection of packaging -- finished product shipment.

Our strengths

1. Till 2018, we have been engaged in the field of etching for 19 years, and have been committed to the innovation, research and development, production and sales of thermal board in the middle and high-end market.Aspire to become China's etching industry hundred year enterprise!

2. The company has successively passed iso9001:2008 quality management certification and iso14001:2004 environmental management system. In 2016, the company passed ISO/TS 16949 certification and high-tech enterprise certification.

3. The company is a member of PCMI, an organization of the world etching association, and can share new information and equipment of the global thermal balance board.

4. It has an automatic adding system and regeneration system for potions, and a self-built large-scale sewage treatment system, with the reuse rate of wastewater reaching above 40%.

5. We can make the soaking board with a small thickness of 0.02mm and a large etching size of 1800*700mm, with a precision up to +/-0.005mm according to the product.

6. Shenzhen zhuolida, kunshan zhuolida and nantong zhuolida three production bases, with a comprehensive area of more than 40,000 square meters.More than 20 conventional, imported and customized non-standard precision etched lines can meet the requirements of production capacity and the accuracy of all kinds of soaking board.


PRODUCT CHARACTERISTICS

  • 01

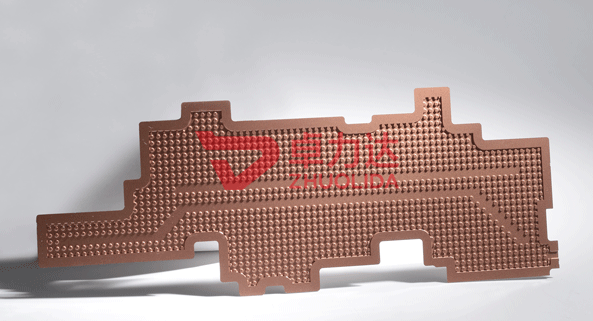

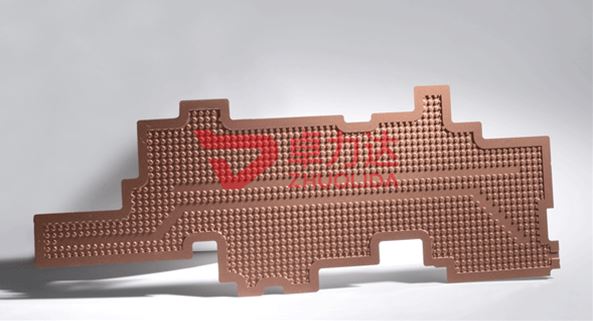

        On the appearance of the soaking board, it is a planar plate-like object with a cover close to each other on the top and bottom, and a copper column supports it.The upper and lower copper plates are made of oxygen-free copper, usually with pure water as the working fluid, and the capillary structure is made of copper powder sintering or copper mesh.

  • 02

        As long as the characteristics of the plate are maintained, the shape of the outside of the module will be unlimited depending on the application of the cooling module environment.In practical application, the temperature difference measured at any two points of the plate can be less than 10℃, and the conduction effect of the hot pipe to the heat source is more uniform, hence the name of the soaking plate.The thermal resistance of the common soaking board is 0.25℃ /W, which is applied to 0℃ ~ 100℃.

  • 03

        Small size can make the radiator control to the entry-level low-power so thin;Thermal conductivity is fast, less likely to lead to accumulation of heat, the same case fan can also speed lower noise control smaller;Internal copper mesh, rough wall more conducive to high thermal conductivity, strong fan rapid export their heat into the air.

  • 04

        The hot plate has no power supply and no moving parts. It is a completely sealed passive device.



The materials used by our company are mainly imported, and we are able to etch and process various materials with thickness ranging from 0.03mm to 2.0mm.Small tolerance can be controlled at ±0.01mm, self-built large-scale sewage treatment station, has a number of imported etching processing lines, and a number of the world's top 500 enterprises to provide free thermal board process solutions.If you need to do thermal products, or you need to understand the metal thermal plate process and principle, please contact us, we will be dedicated to serve you!
