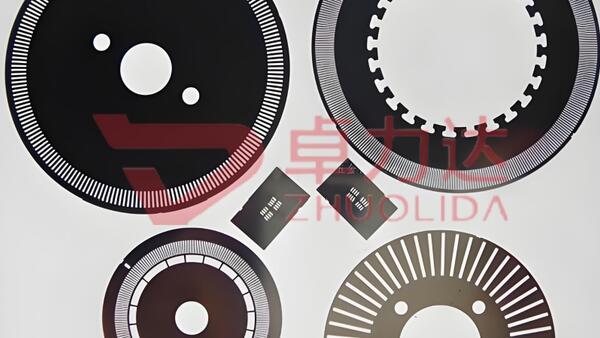

Electroformed Code Disc

Electroformed code discs are high-precision metal parts for photoelectric/magnetoelectric encoders. Their engraved patterns turn mechanical motion into digital signals to precisely measure angle, speed and position.

CONSULTATION

189-3869-3452 0513-8160 1666

PRODUCT DETAILS

Electroformed Code Disc | High Precision Metal Encoder Code Disc Manufacturer Zhuolida

Electroformed code disc is a high-precision metal optical encoder component manufactured by professional electrochemical electroforming technology. Compared with laser-etched code discs, stamped metal code discs and plastic injection-molded code discs, electroformed code discs have unparalleled advantages in dimensional accuracy, surface flatness, vertical light transmission slits and no internal stress. This core part is widely applied in precision instruments, servo motors, industrial encoders, medical detection equipment, aerospace sensing equipment and new energy automatic control systems.

As a professional original manufacturer located in Nantong High-tech Zone, Jiangsu Province, Zhuolida specializes in customized production of electroformed code discs for global industrial buyers. Our factory is equipped with full photolithography, electro-deposition and micron-level precision testing equipment, supporting small-batch prototype trial production and mass bulk delivery. All electroformed code discs adopt high-purity nickel and nickel-cobalt alloy raw materials, meeting RoHS, REACH and industrial precision instrument quality standards.

Core Advantages of Custom Electroformed Code Disc from Zhuolida

First, ultra-high micron dimensional precision control. Our electroformed code discs realize uniform light-transmitting slits with tolerance controlled within ±0.5μm. Vertical slit side walls avoid light scattering, greatly improving the signal identification accuracy of optical encoders. The electroforming process will not produce mechanical extrusion deformation, burrs or residual stress, which are common defects of laser cutting and stamping processing.

Second, diversified material and structural customization services. We supply pure nickel electroformed code discs, nickel-cobalt alloy code discs and ultra-thin metal code discs according to customer equipment requirements. The product thickness ranges from 0.02mm to 0.3mm, with customizable slits, grating density, outer diameter and inner hole sizes. Reinforced frame structure can be added to improve assembly stability during long-term high-speed operation.

Third, stable performance adapting harsh working environments. Nickel alloy electroformed code discs have excellent corrosion resistance, high-temperature resistance and electrical conductivity. They can maintain stable optical sensing performance under high-speed rotation, damp industrial environment and weak acid working conditions, effectively extending the service life of encoders and reducing equipment maintenance costs.

Wide Application Fields of Electroformed Code Disc

Our customized electroformed code discs are exported to Southeast Asia, Europe, North America and other regions, serving multiple high-end precision manufacturing industries. In industrial automation, electroformed code discs are the core sensing parts of servo motor encoders, robot joint angle sensors and CNC machine tool position detection modules. In medical equipment, micro-sized electroformed code discs are used for minimally invasive medical detection instruments and portable medical sensing devices.

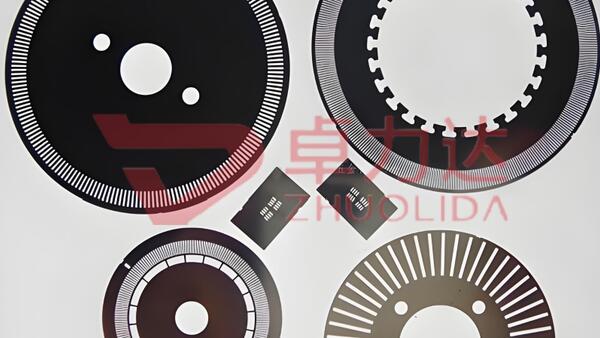

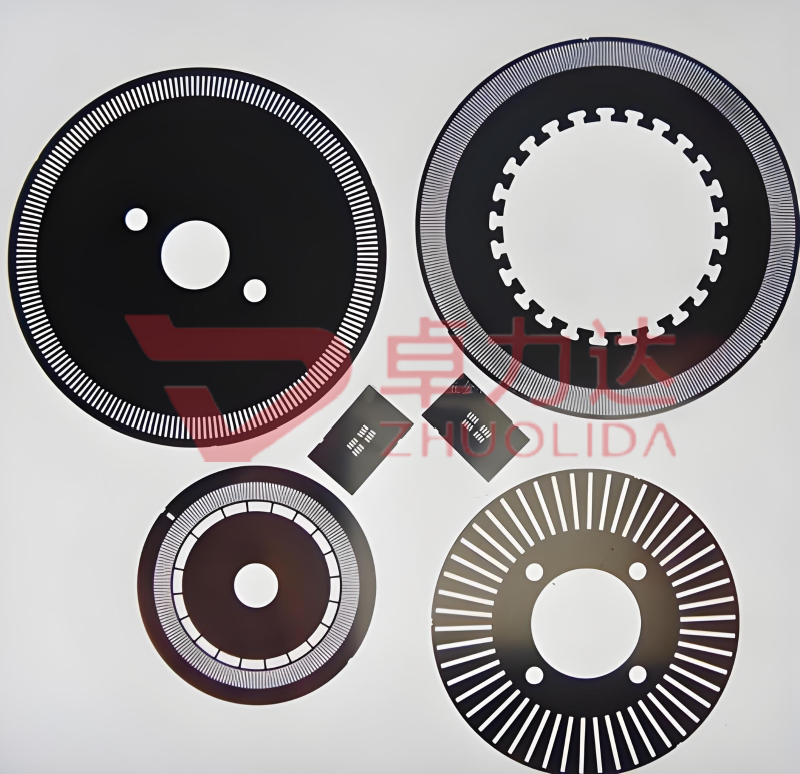

2a0bb1fa02654390b7bd8c6d371d9d2a_4

In aerospace and optical testing equipment, ultra-precision electroformed code discs provide high-accuracy angle measurement data for optical detection systems. Besides, small electroformed code discs are also essential components of new energy vehicles, intelligent monitoring equipment and laboratory precision measuring instruments.

Why Choose Nantong Zhuolida as Your Electroformed Code Disc Supplier

As an integrated manufacturer of electroforming and precision etching technology in Nantong, we have prominent geographical and service advantages for global purchasers. Our factory is close to Shanghai Port, realizing fast sea freight delivery for export orders. We provide free sample testing for all customers, with a short lead time of 5 to 7 working days for prototype samples.

Our factory directly supplies products without middlemen, cutting comprehensive procurement costs for long-term bulk order clients. We have a professional technical team that can adjust the structural parameters of electroformed code discs according to the unique requirements of customer equipment, providing one-stop customized solutions.

Conclusion

With the continuous upgrading of global precision automation manufacturing, the market demand for high-precision electroformed code discs keeps growing steadily. Nantong Zhuolida, a reliable electroformed code disc manufacturer in Jiangsu, China, always adheres to strict micron-level production standards and thoughtful customized services. We help worldwide precision instrument manufacturers improve equipment detection accuracy, reduce failure rates and enhance overall product competitiveness. For any consultation about customized electroformed code discs, welcome to contact our professional sales team for detailed technical parameter communication and factory direct quotation.
