From the new electronic simulation target system to see the target technology development status

Russian military units have developed a new electronic simulation target system that can virtually display a variety of targets to be attacked on radar screens, allowing trainees to train air defense measurement skills related to radar positioning without going to a shooting range.

It is reported that the simulated target system can be used by trainees to drill air defense measurement skills at any training site.After completing a training course at one location, the target system can be transported by a container truck with protective gear to another location for re-use in training.Instructors can be remotely controlled to temporarily add subjects to improve the difficulty of training.

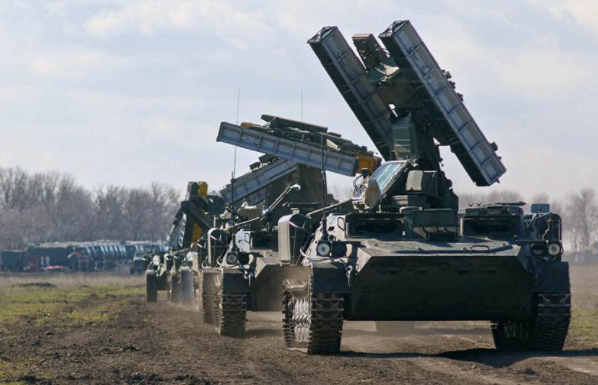

Alexander gorikov, a former commander of Russia's air defence missile force, said the Russian air defence forces had also used air-firing and anti-jamming simulators for training, but these simulators had different technical standards, making it difficult to realistically practice a full range of air defence measurement skills."The new simulation system can set up more complex confrontation situations to help officers and soldiers learn to complete difficult tactical tasks."The electronic simulation target system has been tested and the military plans to equip the troops with it this year, according to the defence ministry.

Western countries as early as the 1990 s have invested a lot of resources to the research, and obtained some valuable results, and developed a variety of forms of infrared imaging simulation targets, that can be used generally in the field of infrared target simulation target on the development and utilization, has the high level.Based on the situation abroad, infrared simulation targets mainly include the following categories:

1. Thermal resistance array infrared scene simulator;Developed by the British hanging resistance infrared scene projector (TPS5) system, is a 512 x512 thermal resistor array infrared scene projector, he is the working principle of infrared image information is converted to the appropriate control signal, through a complex electronic control system, to control thermal resistor array add heat, resulting in infrared images.He can simulate infrared images of targets in the air and on the ground.It has 512x512 pixels, operates at temperatures above 350 degrees Celsius, and has a time constant of 0.5ms.

2, the infrared laser direct writing scene projector: the United States has developed a kind of laser direct writing picture projector, his works is converts infrared image information to the appropriate control signal, through a complex electronic control system, the control of sound and light instruments, the sound and light instruments, will a laser beam to angular deviation and intensity modulation, modulation of the laser and the optical lens through the optical window directly projected to the target on the focal plane array, each pixel on focus plane array for heating, generate the infrared image.The characteristic of the system is that it can produce complex infrared image, and the image change can be completed in a very short time, with good dynamic characteristics.

There are also some universities and scientific research institutions in China that have done a lot of research on simulated targets, aiming to provide infrared characteristics and thermal images of different targets under different meteorological conditions and different backgrounds.Zolida provides free target process solutions.If you need to make infrared target products, or you need to know the target process and principle, please contact us, the hotline: 0513-81601668.
